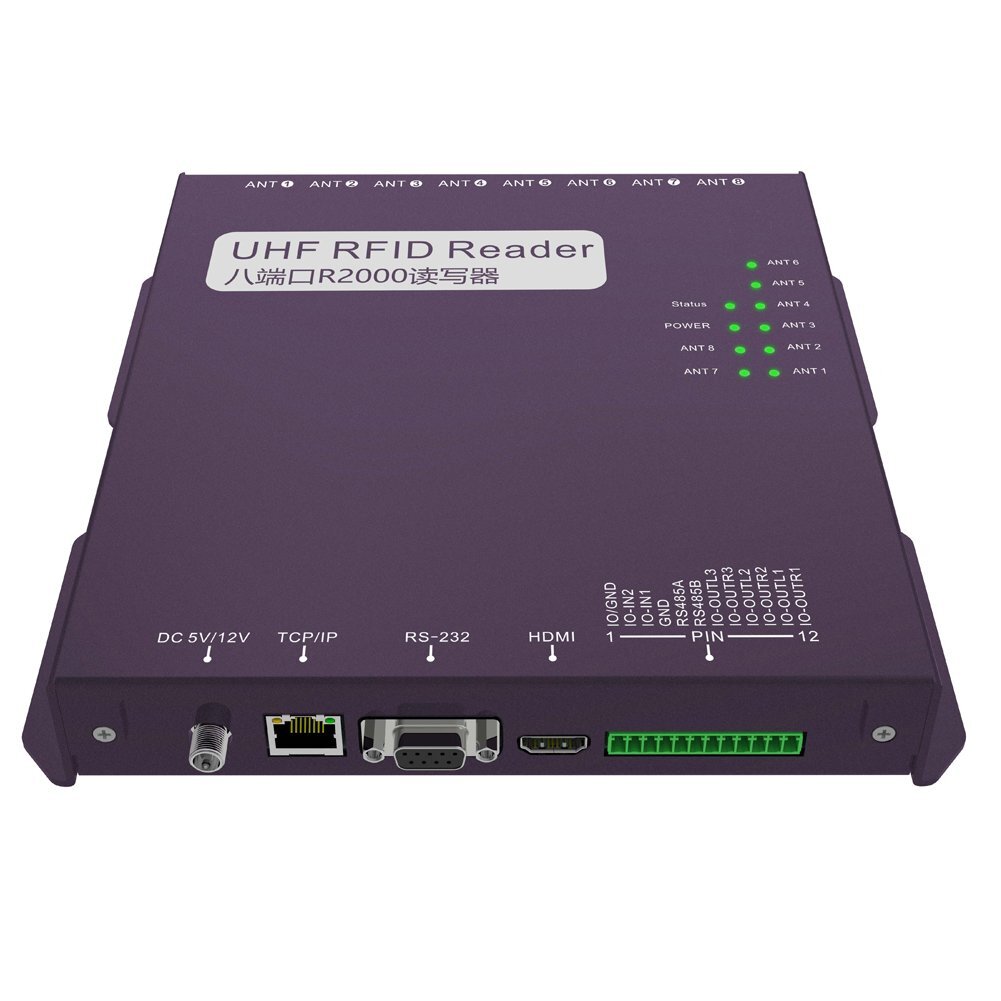

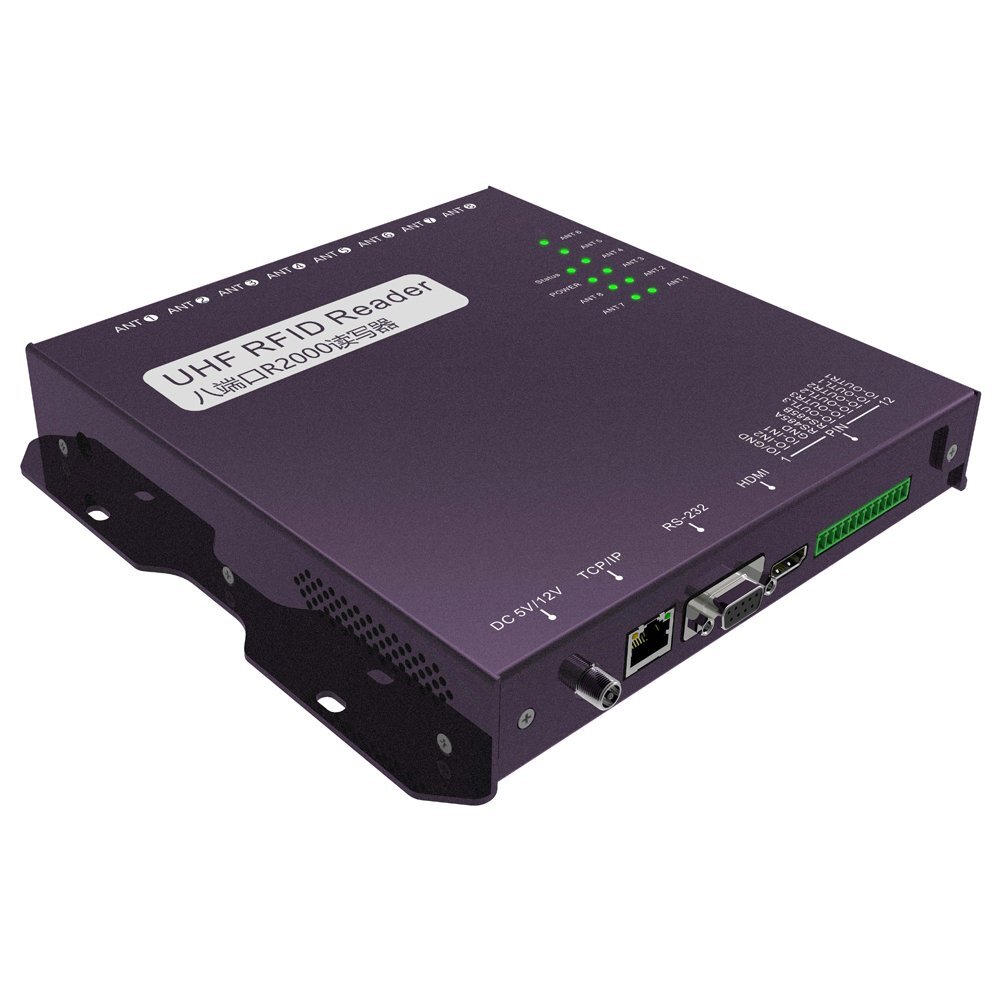

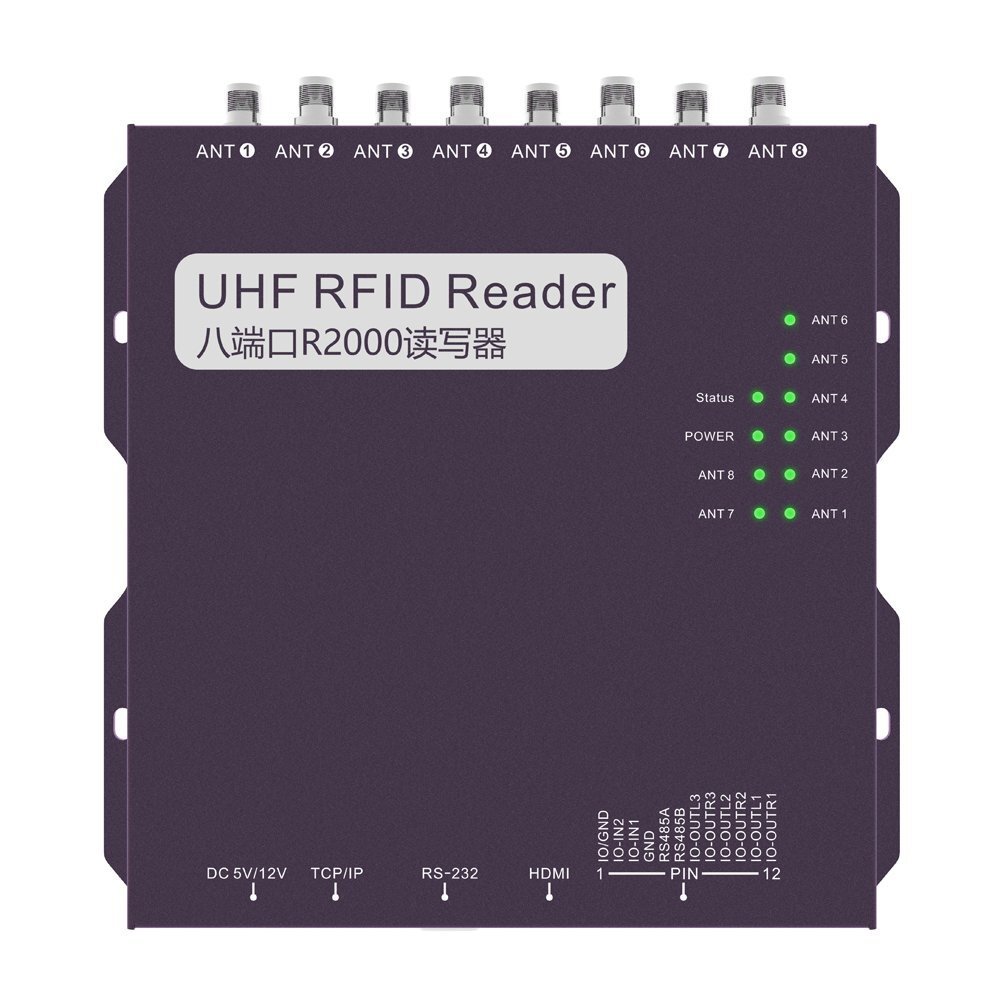

8-port UHF RFID Reader 八端口UHF超高頻讀寫器
產品描述：
Model RD-8APerformance Specifications
Frequency Range 840MHz～960MHz
Protocol EPC C1G2, ISO18000-6B/C, and GB/T29768-2013(optional)
RFID Chip Impinj R2000
Communication protocol TCP/IP
Reading Distance 0-20 meters, adjustable
Antenna port 8 TNC ports
Working mode Fixed frequency/frequency hopping optional
Display interface HDMI 1080P
I / O interface 2 inputs, 3 outputs
Functional features It support intensive reading and writing, antenna standing wave detection function, firmware online upgrade, tag data filtering, RSSI: perceived signal strength
RF output power (port) 33dBm±1dBm（MAX）
Output power regulation 1 dB step
Channel occupied bandwidth ＜200KHz
Frequency stability ≤±20ppm
Read distance 0-20M (related to transmit power, antenna type, tag type and application environment)
Writing distance 0-10m (related to transmit power, antenna type, tag type and application environment)
Recognizing speed >600 times / S
Ethernet interface communication rate 10m / 100M adaptive
RS232 Baud rate support 9600, 19200, 115200 (default), 460800 optional;
USB USB2.0 full speed interface
OS Android 4.4
Power consumption 20W (output power 33dbm)
Physical Specifications
Dimension 220.4*208.4*27mm
Material Aluminum
Communication port Ethernet, RS-232，RS-485
Installation Method Fixed by four screw holes
Power Supply
Power Supply 12V/3A
Operating Environment
Operating temperature -20 oC ~+60 oC
Storage temperature -40℃～+85℃
Working humidity <95% (+25°C)
1. Based on Impinj R2000：It is designed based on the R2000 special UHFRFID chip with excellent performance, with strong scalability, stable performance, and powerful functions, which can meet a variety of applications;
2. Excellent read & write performance：The reader has excellent reading performance, with a reading distance of up to 20M, a writing distance of up to 10M, and a reading speed of >500 times per second;
3. Configuration: It uses the Android4.4 operating system, and is equipped with a dedicated UHFRFIDR2000 chip, and a 1.6GHz quad-core processor;
4. Optional application: It supports one 485 interface, 3 GPO outputs, 2 GPI inputs, one USB output, and HDMI high-definition output;
5. Supports full-band work: China, Europe, the United States, Japan and other different frequency bands, GB, 920MHz～925MHz, 840MHz-845MHz; FCC, 902MHz～928MHz; ETSI865MHz～868MHz; JP,916MHz～920MHz;
6. Wide scope of application: It is widely used in different fields such as vehicle inspection, customs clearance, vehicle inspection, personnel entry and exit, asset entry and exit, electronic ticket, file management, jewelry management, warehouse management and so on.
